Why Critical Power & Telecom Systems Choose Us
Engineered to eliminate dielectric risk, cable jacket degradation, and catastrophic mechanical dislodgement across high-voltage and high-wind environments.
Severe Corrosion Resistance
Fabricated from SS 304 and marine-grade SS 316. Unyielding performance under coastal salt-spray, acid exposure, and industrial emissions where standard polymer ties deteriorate within months.
Thermal Resilience (-60°C to 550°C)
Retains complete mechanical stability under sub-zero Arctic freeze and high-temperature conditions. Fully flame-retardant, halogen-free, and fireproof for tunnel and cable vault applications.
High Tensile Strength (Up to 250 lbs)
Engineered for high mechanical loads. From standard 600N (135 lbs) to 1112N (250 lbs) heavy-duty specifications, preventing bundling collapse under severe wind shear and short-circuit faults.
Precision Ball Self-Locking
Features an internal rolling sphere mechanism allowing low-effort insertion and irreversible locking tension. Fast deployment dramatically cuts field installation labor costs on telecommunication towers.
15 to 20+ Years Outdoor Durability
Unmatched lifespan that eliminates repeated maintenance cycles. While nylon fasteners fail within 12-24 months under direct solar UV and thermal degradation, our stainless steel remains operational for decades.
Dynamic Anti-Vibration Security
Laboratory validated with a 1,000-hour continuous harmonic vibration profile, maintaining 92% structural grip integrity. Essential for exposed power pylons and wind-buffeted antenna mounts.
End-to-End Cable Fastening Solutions
Explore our complete inventory of ball self-locking ties, coated solutions, heavy strapping bands, and calibrated tensioning tools manufactured to international specifications.
Ball Self-Locking Cable Ties
Available in uncoated bare steel, pure Epoxy Coated, and PVC Coated variants. Optimal edge burr control prevents damage to fiber and power insulation jackets.
Request Quote
Stainless Steel Banding Straps
Continuous length strapping coils engineered for large-diameter utility poles, secondary distribution bundles, and large power transformer mounting applications.
Request Quote
Banding Buckles & Clips
Heavy-duty Tooth-Shaped and L-Shaped buckles in SS201, 304, and 316. Accommodates single and double-wrapped banding profiles with maximum mechanical grip.
Request QuoteErgonomic Installation Tools
G600, LQA, S001 Heavy-Duty, and G338 manual/ratchet installation guns. Applies consistent tension up to 2400N with automatic flush tail cut-off for installer safety.
Request QuoteMission-Critical Deployments in Power & Telecom
From 5G microwave antenna towers to high-voltage substation switchyards, discover how our fasteners safeguard essential utility and communication operations worldwide.
High-Voltage Electrical Grid & Substations
Transmission towers and power distribution switchyards demand clamping solutions that survive mechanical fault currents, eddy-current heating, and dynamic wind buffeting without loss of clamping pressure.
- Securing high-capacity primary conduits, grounding lines, and aerial drop bundles.
- Non-magnetic SS316 options to mitigate localized induction heating across heavy AC lines.
- Epoxy-coated variants prevent galvanic corrosion across dissimilar metal structural towers.
Telecommunications Towers & 5G Small Cells
Cellular base stations and remote radio heads (RRH) exposed on summits or rooftop frames require zero-maintenance fasteners impervious to intense solar UV and constant vortex vibration.
- Zero slippage on vertical feeder cable bundles, microwave waveguides, and hybrid fiber drops.
- PVC and Polyester coatings protect sensitive telecom line sheathing from micro-abrasion.
- Eliminates brittle fracture failures common in cold climate telecom towers.
Engineering Specifications & Load Ratings
Precision-stamped edges, tight thickness tolerances, and calibrated tensile margins. Full OEM length variations available upon request.
| Part Model | Dimensions (L × W × T) | Max Bundle Dia. | Min Loop Tensile Strength | Available Grades | Standard Packaging |
|---|---|---|---|---|---|
| Z4.6×150 | 150mm × 4.6mm × 0.25mm | 37mm | 600 N (135 lbs) | SS201 / SS304 / SS316 | 100 Pcs / Polybag |
| Z4.6×200 | 200mm × 4.6mm × 0.25mm | 50mm | 600 N (135 lbs) | SS201 / SS304 / SS316 | 100 Pcs / Polybag |
| Z4.6×360 | 360mm × 4.6mm × 0.25mm | 102mm | 600 N (135 lbs) | SS201 / SS304 / SS316 | 100 Pcs / Polybag |
| Z7.9×200 (Heavy-Duty) | 200mm × 7.9mm × 0.25mm | 50mm | 890 N - 1112 N (200 - 250 lbs) | SS304 / SS316 | 100 Pcs / Polybag |
| Z7.9×360 (Heavy-Duty) | 360mm × 7.9mm × 0.25mm | 102mm | 890 N - 1112 N (200 - 250 lbs) | SS304 / SS316 | 100 Pcs / Polybag |
| Z12.0 / Z16.0 Custom Banding | Custom Coils × 0.4 - 0.75mm | Continuous Banding | Up to 2400 N+ | SS304 / SS316 / SS316L | 30.5m / 50m Dispenser Tote |

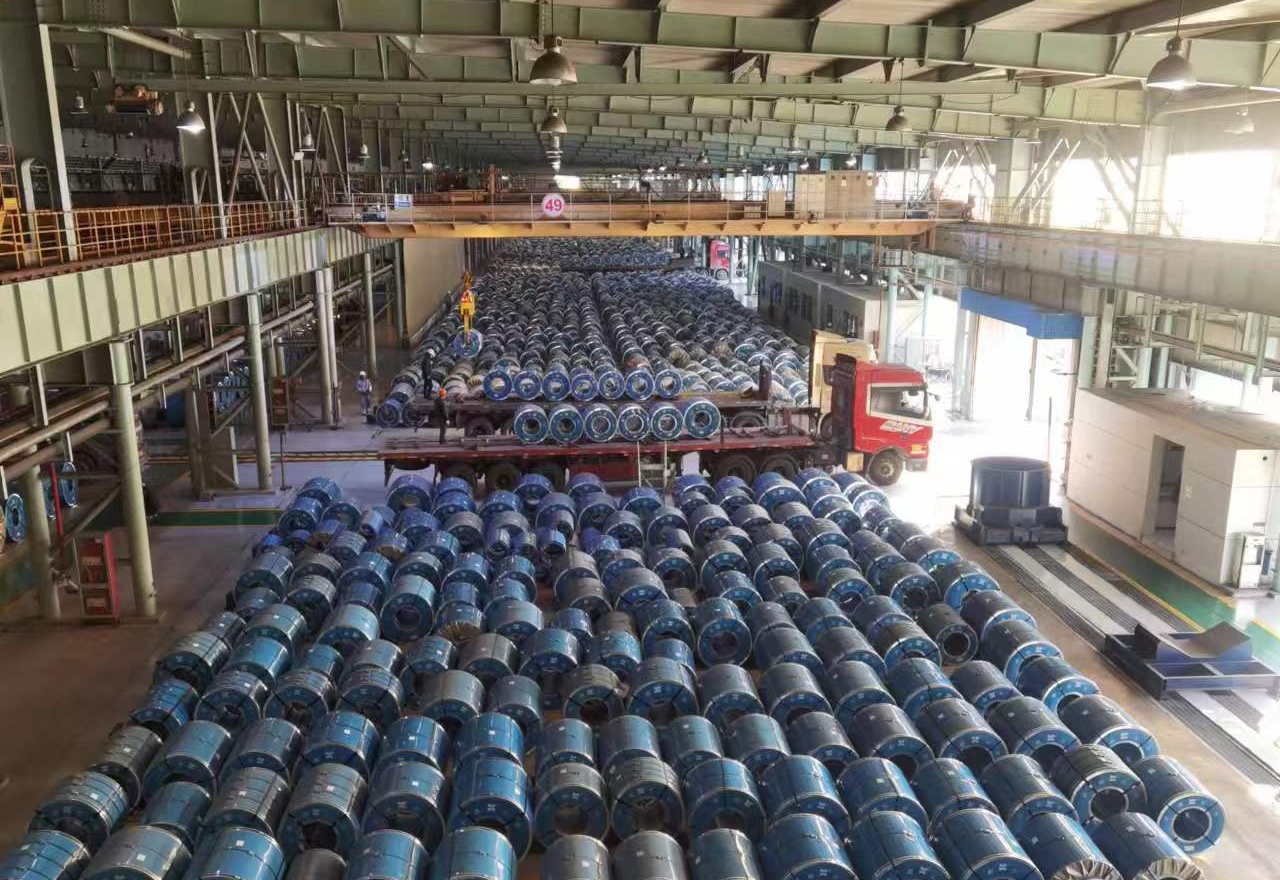

Backed by Ningbo Xinjing Stainless Steel Heritage
For more than 20 years, Zhejiang Deyi New Materials Co., Ltd has stood as a premier processor, stockholder, and supply partner for stainless steel coil, sheet, and strip derivatives.
Our raw material direct supply lines from premier mills including Baoxin, Zhangpu, TISCO, and Lianzhong ensure uncompromised chemical purity across 201, 304, 316, 316L, 321, and duplex 2205 grades.
Our affiliated precision manufacturing facility, NINGBO CONNECT, operates under an IATF 16949 certified quality management infrastructure, supplying advanced engineered stainless parts across 30+ countries worldwide.
Complete Engineering Support for Overseas Buyers
We streamline procurement by providing fully integrated, direct-from-mill customization and rigorous factory batch control.
OEM / ODM Customization
Tailor width (4.6mm to 25mm), total length, material grade, and coating thickness (Epoxy or PVC). Custom laser printing and barcoding on tie surfaces are fully supported.
One-Stop Ecosystem
Eliminate supplier fragmentation. Secure self-locking ties, continuous roll strapping, wing-seal clips, tooth buckles, and matching tensioning tools from a single manufacturing source.
Full Batch QC Traceability
Every dispatch undergoes automated tensile break tests, 1000h salt spray validation, and coating dielectric inspections with mill test certificates provided per shipment.
Get Your Custom Engineering Quotation
Connect with Our Engineering Desk
Direct Email
Phone / WeChat
WhatsApp 24/7
Headquarters & Processing Center
#99 Mujin Road, Yinzhou District, Ningbo, China
